What is Cold Drawn Seamless Mechanical Tubing (CDS) and Why is it Important?

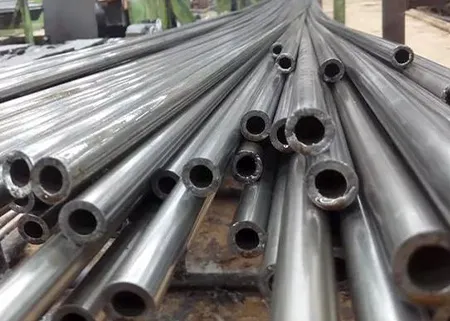

Cold Drawn Seamless Mechanical Tubing (CDS) is a type of steel tubing that undergoes a cold drawing process to achieve precise dimensions, enhanced strength, and a smooth surface finish. This process involves drawing the steel through a die without applying heat, which refines the grain structure and improves the material properties.
-
Manufacturing Process of CDS Tubing
The manufacturing process of CDS tubing starts with hot-rolled steel billets, which are pierced to create a rough tube. This tube is then cold-drawn through a die and over a mandrel to achieve the desired dimensions and surface finish. This method enhances the mechanical properties of the steel, making it suitable for high-performance applications. For a detailed overview, refer to the ASTM official website.
-
Key Characteristics of CDS Tubing
CDS tubing is known for its high strength, tight tolerances, smooth surface finish, and uniform microstructure. These characteristics make it ideal for applications that require precision and reliability. For more detailed information on the ASTM A519 standards, visit the ASTM website.
Why Choose Cold Drawn Seamless Mechanical Tubing?
-
Benefits of Using CDS Tubing
- Enhanced Strength and Hardness: The cold drawing process significantly increases the strength and hardness of the tubing.
- Improved Size Accuracy: CDS tubing provides precise dimensions and tight tolerances.
- Better Surface Finish: The tubing has a smooth and shiny surface, which is essential for certain applications.
- Uniform Microstructure: The cold drawing process ensures a consistent microstructure, which enhances the material’s reliability.
-
Comparison with Other Tubing Options
| Feature | Cold Drawn Seamless (CDS) | Drawn Over Mandrel (DOM) | Hot Rolled Seamless (HRS) |
| Seam | Seamless | Welded seam | Seamless |
| Strength | High | High | Medium |
| Dimensional Accuracy | Very high | High | Medium |
| Surface Finish | Smooth and shiny | Smooth and shiny | Rough |
| Uniform Microstructure | Yes | Yes | No |
| Applications | High-precision, high-strength needs | High-strength needs with moderate precision | General applications, less precision |
| Typical Uses | Hydraulic cylinders, automotive parts, industrial machinery | Automotive parts, construction equipment, general fabrication | Oil and gas, structural applications |
Learn more about the benefits of cold drawn seamless tubing from Industrial Tube & Steel.
Where is Cold Drawn Seamless Mechanical Tubing Used?
-
Construction and Heavy Equipment Industry
CDS tubing is used in construction and heavy equipment for components like augers, chassis, crane booms, and hydraulic cylinders, where high strength and precision are critical.
-
Automotive and Transportation Sectors
In the automotive and transportation sectors, CDS tubing is essential for manufacturing auto and truck axles, engine assemblies, roll cages, and drive shafts due to its durability and precision. Explore various applications of CDS tubing in the automotive industry on Alro Steel.
The oil and gas industry relies on CDS tubing for pumps, barrels, plungers, and bearing races, benefiting from its superior strength and resistance to harsh environments.
-
General Machining and Fabrication
CDS tubing is used in general machining and fabrication for producing supports, telescoping purposes, industrial lift components, and various machine parts requiring high precision.
What Are the Technical Specifications of CDS Tubing?
-
Material Grades and Standards
Common steel grades used for CDS tubing include 1018 and 1026, meeting ASTM A519 standards. These grades offer excellent machinability and strength. For a deeper dive into material specifications, refer to the ASTM website.
-
Size Range and Tolerances
CDS tubing is available in a wide range of sizes, from 0.250″ to 10.000″ in outer diameter, with wall thicknesses from 0.035″ to 1.500″. The tubing is stocked in random lengths of 17.000′ to 24.000′, with custom lengths available.
-
Quality Control Measures
Strict quality control measures, including dimensional inspections and material testing, ensure that CDS tubing meets stringent industry standards for performance and reliability.
How to Choose the Right Cold Drawn Seamless Mechanical Tubing?
-
Factors to Consider When Selecting CDS Tubing
When selecting CDS tubing, consider factors such as the specific application requirements, material properties, and required tolerances. Assess the working environment and the stresses the tubing will face to ensure the chosen material can withstand these conditions.
-
Matching CDS Tubing Specifications to Your Needs
Match the material grade, size, and tolerance of the CDS tubing to your specific needs. For example, if you need high strength and tight tolerances for a hydraulic cylinder, choose a grade and size that meets these requirements.
What Are the Best Practices for Using Cold Drawn Seamless Mechanical Tubing?
-
Handling and Storage Guidelines
Proper handling and storage of CDS tubing are essential to maintain its quality. Store the tubing in a clean, dry area to prevent corrosion and damage. Use appropriate lifting equipment to avoid deformation.
-
Machining and Fabrication Tips
When machining CDS tubing, use sharp tools and adequate lubrication to achieve the best results. Follow the manufacturer’s guidelines for machining speeds and feeds to prevent work hardening and tool wear.
-
Maintenance and Inspection Practices
Regular maintenance and inspection of CDS tubing are crucial to ensure its longevity and performance. Check for signs of wear, corrosion, and deformation, and address any issues promptly to avoid equipment failure.
FAQs
-
What are the Common Applications of CDS Tubing?
CDS tubing is commonly used in industries such as construction, automotive, oil and gas, and general machining for applications requiring high strength, precision, and a smooth surface finish.
-
How Does the Cold Drawing Process Enhance the Properties of CDS Tubing?
The cold drawing process increases the strength and hardness of the tubing, improves dimensional accuracy, and provides a smooth surface finish by drawing the steel through a die and over a mandrel without applying heat.
-
What Factors Should Be Considered When Selecting CDS Tubing?
Consider the specific application requirements, material properties, required tolerances, and working environment when selecting CDS tubing to ensure it meets the necessary performance criteria.
-
How Should CDS Tubing be Stored and Handled?
Store CDS tubing in a clean, dry area to prevent corrosion and damage. Use appropriate lifting equipment and handling techniques to avoid deformation and maintain the tubing’s quality.
Conclusion
Cold Drawn Seamless Mechanical Tubing is a versatile and high-performance material used in various industries for its superior strength, precision, and smooth surface finish. Understanding the benefits, applications, and best practices for using CDS tubing can help you make informed decisions and ensure optimal performance in your projects. At AlloyXpert, we pride ourselves on delivering top-quality CDS tubing that meets the highest industry standards. Contact AlloyXpert today to place your order and experience the difference in quality and service. Have any questions? Reach out to us for expert advice.
